MS-DOS 에서 현재 사용중인 WIndows 로 파일을 가져오는데는 여러가지 방법이 있습니다.

그중 한가지 방법을 소개합니다.

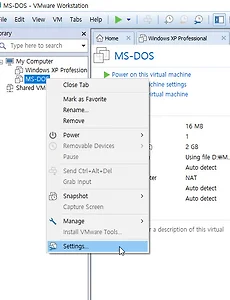

오른쪽 버튼을 클릭하여 Settings... 로 들어갑니다.

Hard Disk (IDE) 를 선택후 오른쪽에 있는 Map... 을 클릭합니다.

Volume 은  MS-DOS 가 설치되어 있는 파티션을 보여주는데,

여기서 1번은 도스가 설치되어 있는 C 드라이브이며 2 번은 D 드라이브입니다.

WIndows10 에서 MS-DOS 로 파일들을 복사할려면 Open file in read-only mode (recommended) 앞의 체크표시를 없애줍니다.

매핑 시킬 드라이브를 선택하고 OK 를 클릭합니다.

자동으로 윈도우탐색기 창이 표시됩니다.

매핑한 드라이브의 사용이 끝났으면 반드시 Disconnect 를 해줍니다.

Disconnect 를 하지 않으면 MS-DOS 로 부팅할 수 없습니다.

VMWare 로 MS-DOS 를 부팅합니다.

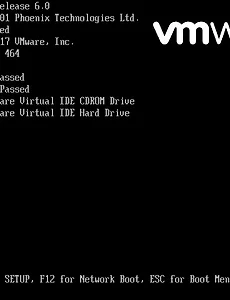

부팅이 끝난 화면입니다.

실제 컴퓨터상에 플로피 디스크 드라이브 장치는 설치되어 있지 않으므로 dir a: 를 실행하면 아래 화면처럼 에러 메시지가 나옵니다.

a를 눌러 프롬프트 상태로 빠져나옵니다.

먼저 VMWare 상에서 가상 이미지 파일을 드라이브 A: 로 불러들이는 작업을 해줘야 합니다.

※ 키보드 왼쪽에 있는 Ctrl 키와 Alt 키를 동시에 눌르면 도스화면에서 빠져나옵니다.

Browse.. 를 눌러 이미지 파일을 불러옵니다. 그리고 Connected 에 체크표시를 해주고 OK를 클릭합니다.

dir a: 를 입력해서 안의 내용을 확인해보았습니다. INSTSALL.EXE 파일이 보입니다.

install 을 입력하여 설치를 실행합니다.

마우스가 설치되어 있지 않은 경우에는, 키보드 왼쪽에 있는 Tab 키를 누르면 이동할수 있습니다.

컬러 화면으로 설치할 것이므로 C 키를 눌러줍니다.

C 키를 눌러줍니다.

F 키를 눌러줍니다.

기본적으로 설치되는 경로는 C:\NC 입니다.

C 키를 눌러줍니다.

2번 디스켓을 넣으라고 나옵니다.

2번 디스켓 이미지 파일을 불러옵니다.

키보드 왼쪽에 있는 Ctrl 키와 Alt 키를 동시에 눌르면 도스화면에서 빠져나옵니다.

3번 디스켓을 넣으라고 나옵니다.

마지막 3번 디스켓 이미지를 불러옵니다.

설치가 모두 끝났습니다.

환경설정을 고쳐주기 위해 R 을 눌러 재부팅합니다.

드라이브 A 에서 디스켓을 제거하라고 하네요.

Connected 앞의 체크표시를 없애줍니다. 그리고 OK 를 클릭합니다.

엔터키를 눌러 재부팅합니다.

 nc 를 입력합니다.

노턴 코맨더 5.5 의 실행화면입니다.

이상으로 마칩니다.

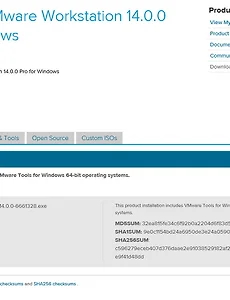

VMware Workstation 14 Pro | 26 Sep 2017 | Build 6661328

Last updated: 26 SEPT 2017

System Requirements

Systems using Processors (CPUs) launched in 2011 or later are supported except:

• Intel Atom processors based on the 2011 “Bonnell”  micro-architecture (e.g. Atom Z670/Z650; Atom N570)
• Systems using Intel Atom processors based on the 2012 “Saltwell” micro-architecture (e.g. Atom S1200, Atom D2700/D2500, Atom N2800/N2600.
• Systems using AMD processors based on the “Llano” and “Bobcat” micro-architectures (e.g. code-named “Hondo”, “Ontario”, “Zacate”, “Llano”)

In addition the following are supported:

Systems using Intel processors based on the 2010 “Westmere” micro-architecture (e.g. Xeon 5600, Xeon 3600, Core i7-970, Core i7-980, Core i7-990)

What's New

The following support is new in Workstation 14 Pro:

• Windows 10 Creators Update support
  VMware Workstation Pro provides the following support for Windows 10 Creators Update:
  • Run Windows 10 Creators Update as a virtual machine
  • Run Windows 10 Creators Update as a host operating system
  • Windows 10 Creators Update Auto Detect and Easy Install
  • Unity support for Windows 10

• New Guest operating systems support
  Support has been added for the following operating systems:
  • Ubuntu 17.04
  • Fedora 26
  • CentOS 7.4
  • RHEL 7.4
  • Debian 9.1
  • Oracle Linux 7.4
  • SLE 12 SP3
  • OpenSUSE 42.3

• Guest VBS Support
  Enabling VBS (Virtualization Based Security) within Windows 10 and Windows Server 2016 running as guest operating systems is now supported on VMware Workstation. You can have advanced security features like Device Guard and Credential Guard within guest operating systems.
  Guest VBS support currently is only supported for Intel CPUs. For best performance, use Intel Skylake generation CPUs and above.

• Virtual TPM
  Workstation 14 Pro now provides a TPM 2.0 compatible virtual Trusted Platform Module for use with advanced security and encryption technologies, such as BitLocker.

• VMware Hardware Version 14
  • New CPU enablement, including Intel Skylake and AMD Ryzen CPU support.
  • Secure Boot, Workstation 14 Pro introduces Secure Boot support for virtual machines to ensure only trusted code is loaded by the UEFI firmware prior to the OS "handoff" process.
  • Virtual NVMe support Workstation 14 Pro introduces a new virtual NVMe storage controller for improved guest operating system performance on Host SSD drives and support for testing VMware vSAN.  NVMe devices require virtual hardware version 13 / ESXi 6.5 compatibility and later.

• Advanced Networking
  • Rename Virtual Network (Windows host only), Workstation 14 Pro can rename networks in the Virtual Network Editor for better organization.
  • Network Latency simulation, As well as being able to introduce Packet Loss and Bandwidth caps, Workstation 14 Pro provides new virtual networking controls for introducing incoming and outgoing Latency to virtual machines on a per-NIC basis.

• ESXi Host Power Operations
  The following ESXi power operations can now be performed from Workstation 14 Pro:
  • Shutdown
  • Restart
  • Enter/Exit Maintenance Mode

• Native OVF support
  With improved OVF/OVA support, Workstation 14 Pro provides an effortless walkthrough to deploy the VMware VCSA (vCenter Server Appliance) OVA package for testing and experimentation within Workstation. VCSA6.0 and 6.5 are supported.

• Scan for Virtual Machines
  Workstation 14 Pro now allows users to quickly refresh their VM inventory by scanning for virtual machines. It supports VMs on local folders as well as on network shared storage and USB drives.

• Automatically Suspend Shared Virtual Machines Upon Host Shutdown
  All running shared virtual machines will be automatically suspended(for both Windows and Linux hosts) or shutdown(Linux hosts only) when the host operating system initiates a shutdown.

• Enhanced UI Experience
  • IP Address Display on VM Console,The IP and MAC addresses of a VM are now displayed in the VM information area. VMware Tools 10.1.15 or greater is required.
  • Auto clean up Windows VM disk space, Clean Up Disks now can be automated upon a VM power off. (Windows hosts only)

• New GTK+ 3 based UI for Linux
  Linux Workstation UI has been rewritten to support GTK+ 3.

Known Issues

The following issues might occur in this version of VMware Workstation Pro.

• “Fit Guest Now” is disabled for Fedora 26 virtual machine with bundled VMware Tools installed
  When Fedora 26 virtual machine is running with VMware Tools bundled with VMware Workstation Pro, menu “View > Fit Guest Now" is disabled.
  Workaround: Uninstall bundled VMTools, and install latest open vm tools.

• In unity/multimonitor mode, after suspend and resume VM, the screen display change to very big image size
  When you check menu View -> Autosize -> Center guest, then switch VM to unity or multimonitor mode, after suspend and resume VM, the virtual machine resolution will change to very big size.
  Workaround: Check menu View -> Autosize -> Autofit Guest

• "The VMware Tools power-on script did not run successfully in this virtual machine" error prompts out when power on a VCSA6.0 appliance
  Power on an imported VCSA6.0 appliance within Workstation Pro, following error message will prompt out:"The VMware Tools power-on script did not run successfully in this virtual machine"
  Workaround: Click "OK" button to ignore the error message.

• USB devices on some of the 3.1 xhci controllers are not available for passthrough on windows hosts
  USB devices connected to some USB 3.1 controllers are not listed under “VM > Removable Devices”, hence the device cannot be pass-through to the virtual machine.
  Workaround: None.

• Windows 10 Insider Preview virtual machine may become black screen after exit Unity or multimonitor
  When you have more than 1 monitors connecting to your host, Windows 10 Insider Preview VM may become black screen under following scenarios:
  • Enter Unity mode and then Exit Unity mode
  • Switch to multimonitor mode, then switch back to 1 monitor
  Workaround: You can switch back to Unity mode or original multimonitor mode to get VM’s display normal.
